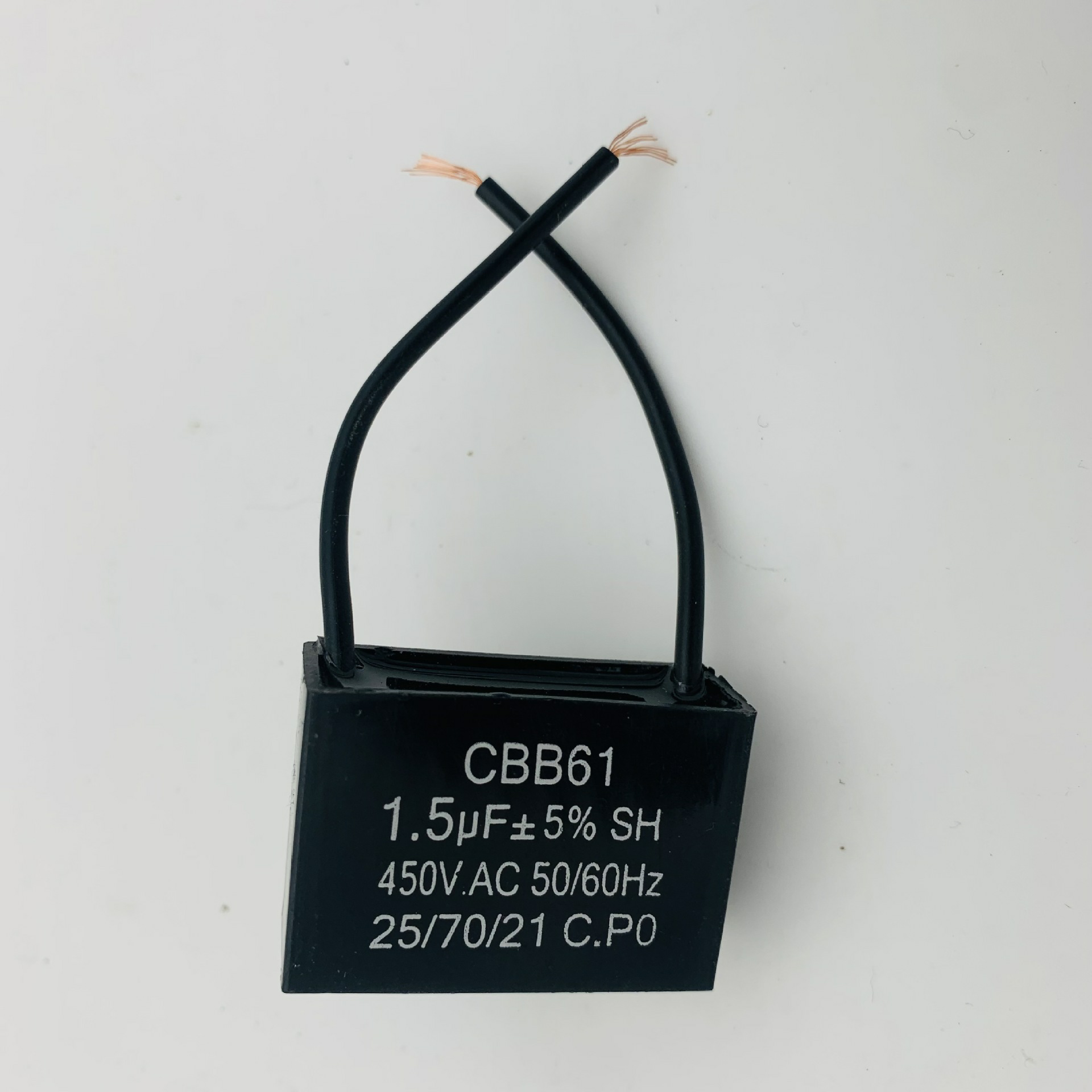

Universal 1.5uf shaking head electric fan capacitor table fan floor exhaust fan accessories

Cash on delivery

₵400.00 ₵280.00

quantity

5 pcs

10 pcs

Quantity

Scope of application:

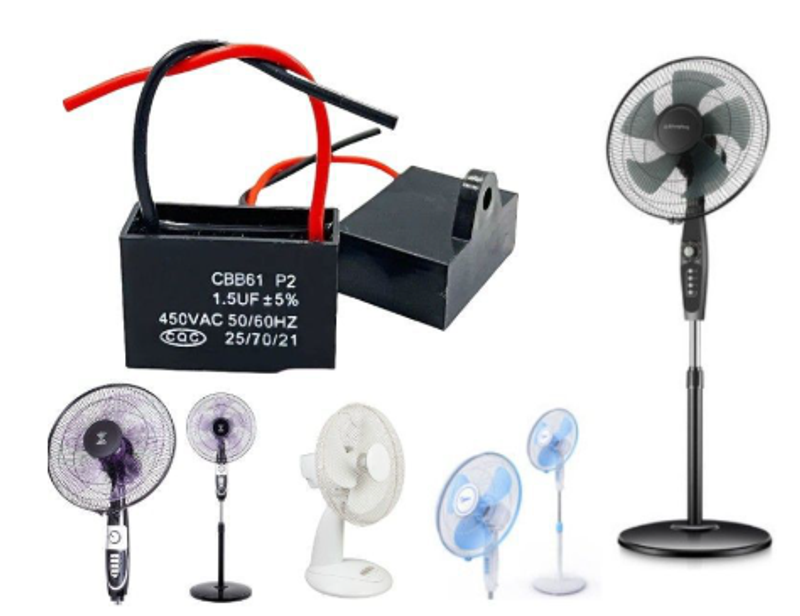

Widely used for starting and running single-phase motors with relatively small power supply of 50Hz/60Hz AC power supply such as air conditioner fans, electric fans, exhaust fans, etc. Technical specifications · Technical characteristics: Climate category: 40/70/21 or 40/85/21 Capacity deviation: ±5% Insulation voltage: >3000S (MuP) · Loss tangent: tgō≤0.002 (50HZ~100HZ) Usage requirements: Altitude: ≤2000m Residual voltage when put into operation: not more than 10% of the rated voltage Allowable voltage: not more than 1.1 times the rated voltage Maximum allowable current: not more than 1.3 times the rated current

Describe

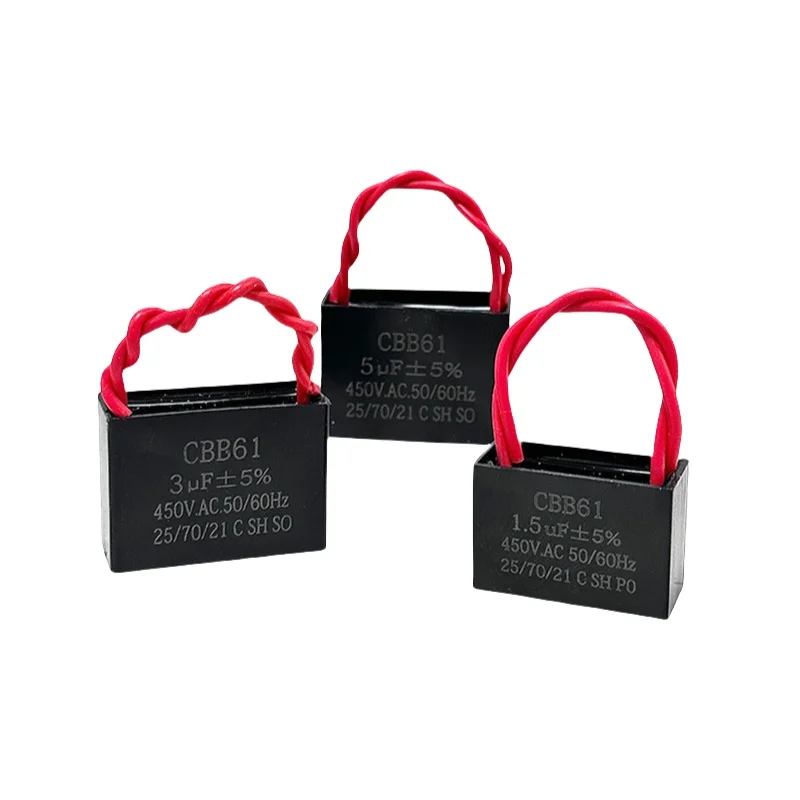

Product name: CBB61 starting capacitor 450V Product shell: flame retardant PBT plastic shell

Product specifications: 1UF-25UF full range Pin: plastic pure copper lead

Features:

1 High stability

2 Pure copper bow wire

3. Good self-healing performance

4. No distinction between positive and negative poles

5. Good heat dissipation

6 Fixed hole installation

7. Long service life
